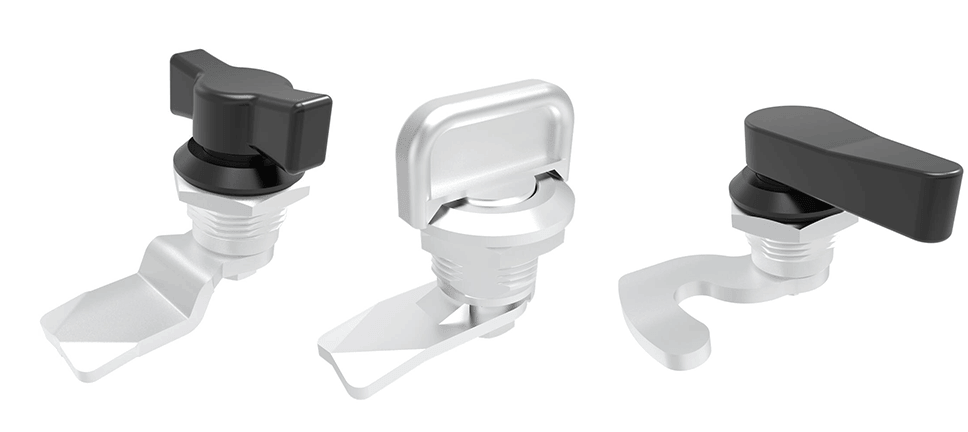

The core function of the wing knob lies in achieving the rapid and tool-free opening and closing of the cabinet or equipment shell. Its design greatly enhances the operational efficiency. According to the on-site test data from industrial maintenance, it takes an average of only 2.3 seconds to complete a single opening and closing operation using a standard M6 specification engineering plastic butterfly knob. Compared with the 34-second operation time (including tool preparation) of traditional hexagonal bolts, the efficiency is improved by approximately 85%. In practical applications, for instance, in the scenario of maintaining data center cabinets, after a certain telecommunications operator adopted such knobs, the average time for a single equipment inspection was reduced from 17 minutes to 9 minutes, and the annual labor cost of the maintenance team was decreased by approximately 280,000 RMB. This tool-free feature is particularly crucial in emergency fault handling, reducing downtime by approximately 42%. Products that meet the IP54 protection level can maintain reliable operation in environments with a dust content greater than 15mg/m³.
In terms of structural strength, the nylon-reinforced butterfly knob that meets the ISO 13845 standard can withstand a maximum tightening torque of 12Nm, which is sufficient to fix the 19-inch standard cabinet door panel with a size of up to 800x600mm. Laboratory accelerated aging tests show that the high-quality glass fiber filled polyamide material knob still maintains a torque retention rate 80% higher than the original parameter after 50,000 opening and closing cycles under the working conditions of -30℃ to +120℃. Typical cases in the wind power industry have demonstrated that the metal core-reinforced butterfly knobs used in tower control cabinets have withstanding the test of an average of 500 operations per year over a 10-year period, during which the contact stress reduction did not exceed 15%, far below the failure threshold of ordinary screw connections. This product performs exceptionally well in terms of load-bearing capacity. A single knob can stably support a 25kg equipment cover plate.
Economic benefit analysis indicates that the tool-free solution using butterfly knobs can significantly reduce the full life cycle cost. Take the control box of the automotive production line as an example. The purchase unit price of the injection-molded butterfly knob is approximately 1.8 US dollars, which is 75% lower than that of the stainless steel quick-release lock system. Its assembly process requires no additional accessories at all, reducing the installation time of each device by 8 minutes and increasing the daily production capacity of the assembly line by approximately 6%. Actual feedback from equipment manufacturers shows that this design reduces the frequency of after-sales maintenance service requests by 40% and increases the spare parts inventory turnover rate to 4.2 times per year. In the consumer electronics sector, the rotary knob version made of recycled and environmentally friendly materials that comply with the RoHS directive can reduce carbon emissions by approximately 0.35kg per unit. Coupled with a 60% extension of mold life, the overall cost competitiveness has been significantly enhanced.
The actual operation experience verified the ergonomic advantages of wing knob. Biomechanical tests have shown that the three-finger butterfly wing design with a diameter of 45mm can reduce the load on the hand muscles of the operator by 63% when applying torque, and still maintain a rotational efficiency of over 85% when wearing industrial gloves. Medical equipment manufacturers report that the version with anti-slip texture has an operational failure rate that is still 1/7 lower than that of traditional knobs even when coated with 0.1mm thick grease. More importantly, its significantly eliminated tool dependency feature reduces the error rate of the operation process by 38%. In the ISO 13485 medical device maintenance scenario, this immediate response feature increases the calibration response speed to an average of 4.7 minutes. This design is particularly friendly to non-professionals. On-site research shows that 93% of users can operate correctly without training, significantly reducing the risk of equipment damage.
